| Material: | YK-30, SKD-11 | Key Word: | MISUMI DME HASCO Mold Parts Interlocking Brick |
|---|---|---|---|
| Hardness: | HRC54-55, 58-62 | Standard: | MISUMI DME HASCO |
| Application: | Medical Facility/Auto Parts/Industry Plastic Parts | Product Name: | Tapered Interlocks |
| High Light: | Hasco Injection Mold Parts,Injection Mold Parts PL Series,DME Tapered Interlocks |
||
PRODUCT DESCRIPTION

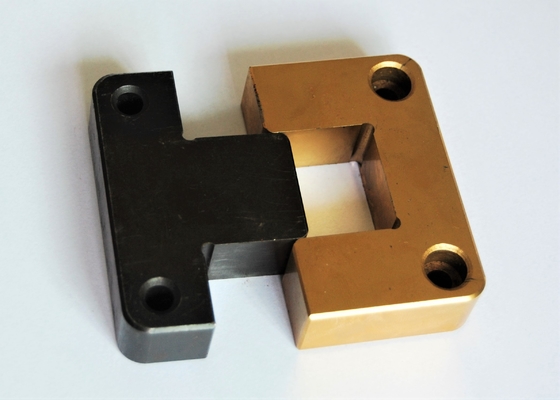

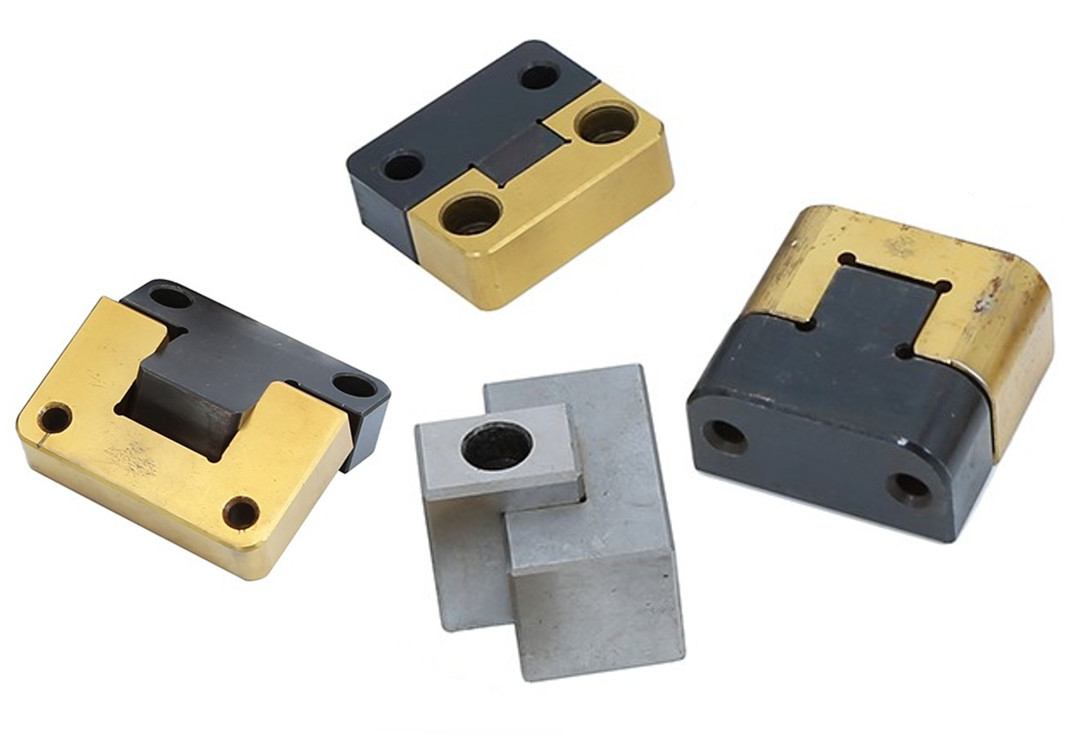

Side locks Tapered interlocks PL series interlock mold locating block set MISUMI DME HASCO Mold parts
Material: Male: YK-30, female: SKD11 (D2)
Hardnesss: Male: YK-30, 54-55HRC, Female: SKD11 (D2) HRC56-60º
Treatment: Vacuum,TiCN, Black Oxide
Metric system (mm)
| Type | Ref No. | A | B | C | D | E | F | f | G | J | K | L | M | N |
| DT041 | PL38 | 38 | 22 | 30 | 12 | 22 | 10.5 | 6.5 | 7 | 7 | 22 | 13 | 5 | 8 |
| PL50 | 50 | 21.5 | 30 | 17 | 21.5 | 10.5 | 6.5 | 11 | 11 | 34 | 16 | 5 | 8 | |
| PL75 | 75 | 36 | 50 | 25 | 36 | 16.5 | 10.5 | 18 | 18 | 50 | 19 | 8 | 12 | |
| PL100 | 100 | 45 | 65 | 35 | 45 | 16.5 | 10.5 | 22 | 22 | 70 | 19 | 10 | 12 | |
| PL125 | 125 | 45 | 65 | 45 | 45 | 16.5 | 10.5 | 22 | 22 | 84 | 25 | 10 | 12 |
Our Main Products

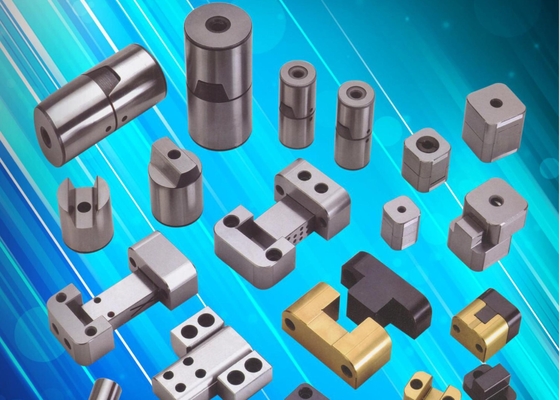

Plastic injection mold components, accessories:
Ejector pin series: ejector pin, stepped pin, core pin, insert pin, flat pin, shoulder pin etc.
Ejector sleeves
Punches,
Die casting mold components
CNC machinery parts
Autocar parts
Guide bushing & wear plate
Air poppet valves

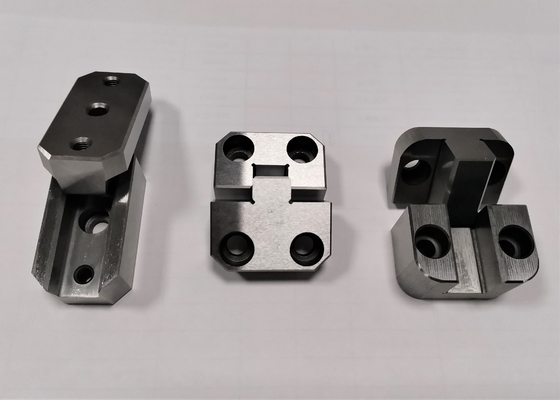

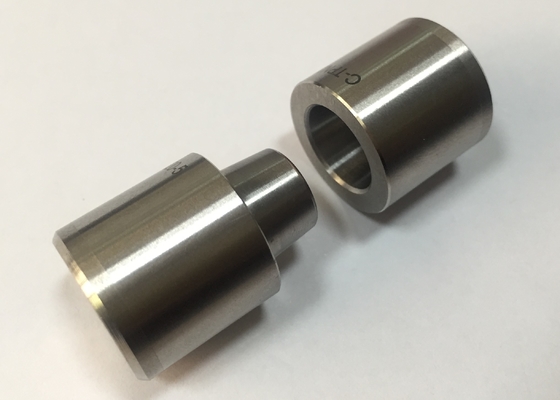

Locating parts, taper interlock
Springs
Professional team, advanced equipments.
Our equipments:
Strict quality control:
Standard but solid package for shipment:
1.plastic bags.
2.cartons
3.Plywood cases, each container is clearly labelled before dispatch.
Port :Shenzhen port , Guangzhou port and another port in Guangdong province,China.
Delivery details : Normally shipped in 3-7 days after payment. Delivered by EMS,Fedex,DHL,TNT,ARAMEX or by sea.
Q&A:
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Standard part is 3-5 days;non-standard part is according to your drawing.
Q:Do you provide free samples ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,
balance before shipment.
