Z171 Precision Mold Parts 20Cr P20 Mold Latch Lock Set With Locating Pin

PRODUCT DESCRIPTION

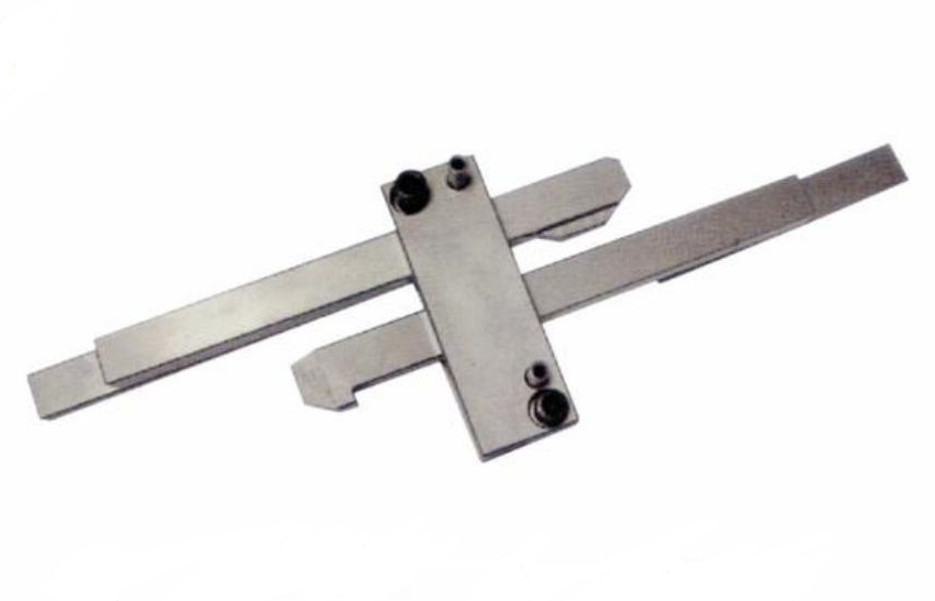

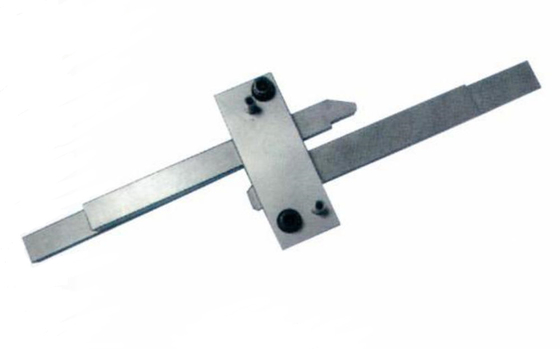

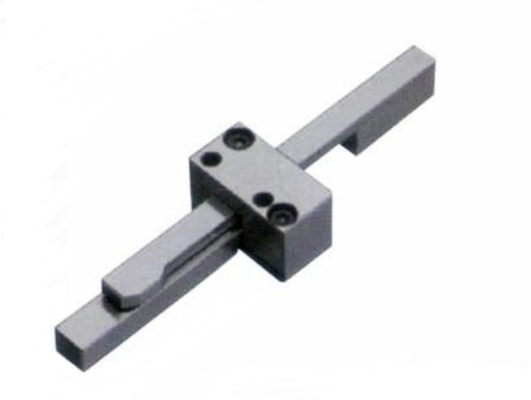

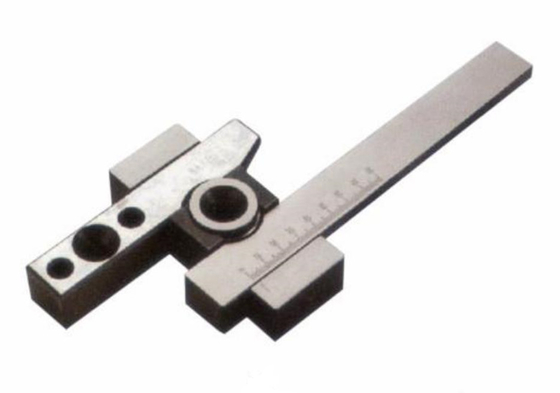

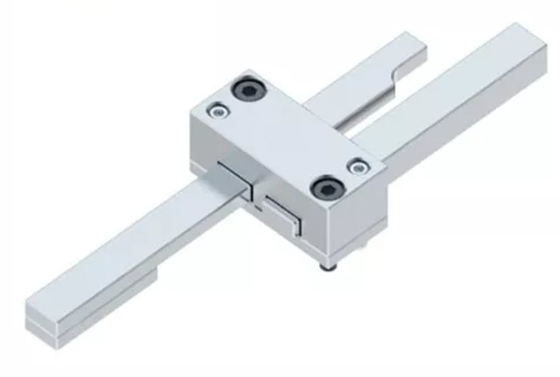

Mold Latch Lock Set With Locating Pin And Roller Pin

Standard:  DME, MISUMI etc.

Material: 20Cr/P20/S45C/SKD61/SUS631/SUJ2/SCM435

Hardness: HRC40+/-3, 58+/-3

1.Need small resistance when close the mold,best fit for the low-pressure molding;with compact structure,easy to install , and have strong clamping force.
2.Visible actions and reliable operation, the point of molding opening is easy to adjust.Free from the influnce of the temperature of the mold.
3.Latch lock must be exact at the same height and right-angled to the direction of the mould opening movement.
4. Position the latch bar in the center of the Cam lock plate, at least 2 sets are requested to be assemble symmetrically.
5.When installing, press the Cam lightly to lock the cam with cam lock plate.

Our Main Products

Professional team, advanced equipments.

1. Established in 2007, one of the top mold components manufacturer in Dongguan city.
2. ISO9001:2015 certified factory and awarded the title of quality supplier by many customers.
3. Well-equipped with advanced machines to meet the strict requirements of customers.
4. Stable team, dedicated craftsman spirit, we supply standard and customized mold parts according to customers’ needs.

Our equipments:

Strict quality control:

Standard but solid package for shipment:

1.plastic bags.

2.cartons

3.Plywood cases, each container is clearly labelled before dispatch.

Port :Shenzhen port , Guangzhou port and another port in Guangdong province,China.

Delivery details : Normally shipped in 3-7 days after payment. Delivered by EMS,Fedex,DHL,TNT,ARAMEX or by sea.

Q&A:
